amateur soccer field lighting design

Football is a highly antagonistic collective sport, which is popular all over the world. The history of football development is enough to show its vitality and influence. According to the regulations of FIFA, the football field is 105-110m long and 68-75m wide. There should be no obstacles within 5m outside the baseline and sideline of the field to ensure the safety of the players. Football lighting is divided into indoor football field lighting and outdoor football field lighting. Different ways of installing lights in different places are also different. The standard should be determined according to the use function of the football field. It can be divided into seven levels: 200lx for training and entertainment activities, 500lx for amateur games, 750lx for professional games, 1000lx for general TV broadcasting, 1400lx for large-scale international games and 750lx for TV emergency. In the past, the traditional football field generally used metal halide lamps or projection lamps with 1000W and 1500W lamps. Because of the shortcomings of traditional lamps, such as glare, high energy consumption, short life, inconvenient installation, poor color rendering and insufficient actual brightness, it has been difficult to meet the lighting requirements of modern stadiums.

Lighting standard for amateur football field（Non TV living）

level	Professional tournaments	amateur tournaments and training	training and entertainments
AVE LUX	500lux	200lux	75lux
UNIFORMITY (u2)	0.7	0.6	0.5
UGR	<50 font="">	<50 font="">	<50 font="">
COLOR TEMPERATURE	>4000k	>4000k	>4000k
RA	80	70	70

Lighting standard for professional football field （TV live）

level	international match	HD TV	Temporary TV live
AVE LUX	1500~3000lux	1500~3000lux	1000~2000lux
UNIFORMITY (u1)	0.6	0.6	0.6
UNIFORMITY (u2)	0.8	0.8	0.8
UGR	<50 font="">	<50 font="">	<50 font="">
COLOR TEMPERATURE	>4000k	>4000k	>4000k
RA	80	80	80

A. Light layout in amateur football field: 4 corners outside the field

position of the lamp post

height of posts:

1. To create uniform lighting, the installation height of the luminaire shall be based on the boundary that can project to the illumination range of the adjacent lamp pole

2. to get lowest UGR, The angle between the center of the court and the lamppost shall not be less than 25 degrees

B. Light layout in amateur football field: on the edges of the field

Installation position of side lighting system lamp postAt least 10 degrees on both sides of the goal line, giving the goalkeeper a clear view from the target to the corner flag

Installation height of side lighting lamps

The angle between the lamp and the corresponding point of the centerline of the field shall not be less than 25 degrees

B: The light layout in professional football field：Light belt arrangement to create good visual conditions for corner players and goalkeepers, The lamps should not be placed within 15 degrees of the center point of the bottom line of the goal.

solution 1: The lamp pole is installed at the four corners of the field, with a height of 15-20 meters. Each pole is equipped with 5pcs 720W professional stadium lamps

solution 2: The lamp pole is installed at the edges of the field, with a height of 15-20 meters. Each pole is equipped with 5pcs 720W professional stadium lamps



solution 3: 6pcs lamp poles are installed at the edges of the field, with a height of 12-18 meters. Each pole is equipped with 3pcs 720W professional stadium lamps

We provide professional light distribution support

We have advanced photoelectric testing platform, introduced experimental equipment such as a distributed photometer, photochromic and electrical testing system, which can complete the test of IES file output, light distribution curve, color rendering index, color temperature and other LED light distribution performance data measurement, and provide customers with comprehensive LED optical technology solutions. With professional LED optical engineer and lighting engineer team, we can provide engineering light distribution support, LED optical testing, data collection, sorting, etc. according to customer needs.

Our LED stadium lights (high pole lights)

It adopts high-power citizen cob LED, with excellent heat dissipation performance, it has a variety of professional light distribution options, built-in high-purity aluminum reflector to effectively suppress glare and spillover light, no need to add a protective cover, high-pressure cast aluminum shell, strong anti Strike ability. the overall electrophoresis process, through 200 hours of salt spray test, protection grade IP67.

Related cases:

Our LED arena lights for soccer field/football field

960W LED arena light

720W LED arena light

480w LED arena light

to get to know more about us and our products, please contact us!

Mr. Haibo Wen (Sales&marketing Manager)
Email: sales@solaronlamp.com  Alt: hypauwen@solaronlamp.com
Cellphone: 0086 15914113316 web: www.ledsunergy.com
Tel: 0086-755-29588922ext 777 Fax: 0086-755-29588933
MSN&SKYPE: hypauwen@hotmail.com,  hypauwen

all in one or split solar street lights, what do you prefer to

solar LED street lights split style

solar LED street lights all in one style

split style solar street lights in a parking lot

all in one solar street lights on the way to a mining company

what do you prefer to, all in one solar street lights or split solar LED street lights?

please send me your reply.

Mr. Hypau Wen
Email: hypauwen@gmail.com  Alt: hypauwen@soli.ltd
Cellphone(whatsapp/wechat): 0086 15914113316
web: www.ledsunergy.com
Tel: 0086-755-29588922ext 777 Fax: 0086-755-29588933
MSN&SKYPE: hypauwen@hotmail.com

rebuild the lighting system for amateur football field

this case is to show how to replace the existing halogens with our professional LED sports lights.

This is a soccer field of 9*9 players located in a middle school playground in China. It is not only a venue for renting amateur football matches, but also an important venue for teachers and students' daily sports activities and school meetings. Therefore, it is urgent to solve the lighting problem in the venue.

we, as the professional outdoor lighting, sports lighting and solar lighting designer and manufacturer, has provided lighting system for many sports venues and practice fields all over the world, and has rich engineering experience and professional technology Operative team.

the existing lights in this venue were 12 sets of 400W and 12 sets of 1000W traditional metal halide light. The metal halide lamps not only consume a lot of energy, but also have a serious light failure. The life of the light source is short. The school maintains the lamps many times a year, but some of the lamps still fail or are damaged.

The school staff hopes to provide a good lighting environment for all kinds of sports events, teachers and students' recreation and sports through a complete set of lighting solutions, on the basis that the illumination is not lower than the original, and at the same time achieve the purpose of durability and energy saving.

According to the requirements of school staff and combined with the actual situation of the site, we proposed the lighting transformation scheme of the system, using 16 480W professional LED sports light and LED stadium lamps 720w 2pcs to replace the metal halide lamps. The total number of lamps decreased to 18 sets, but the overall average illumination increased by a full double. Finally, compared with the metal halide lamp lighting system, LED lighting system can achieve energy saving up to 70%, at the same time, the playground has obtained the first-class lighting effect.

before replacement

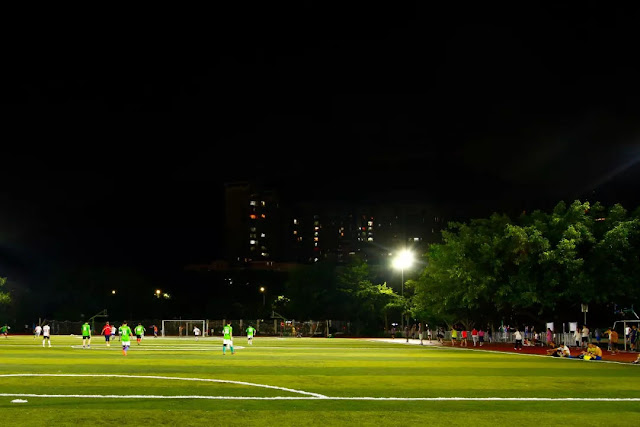

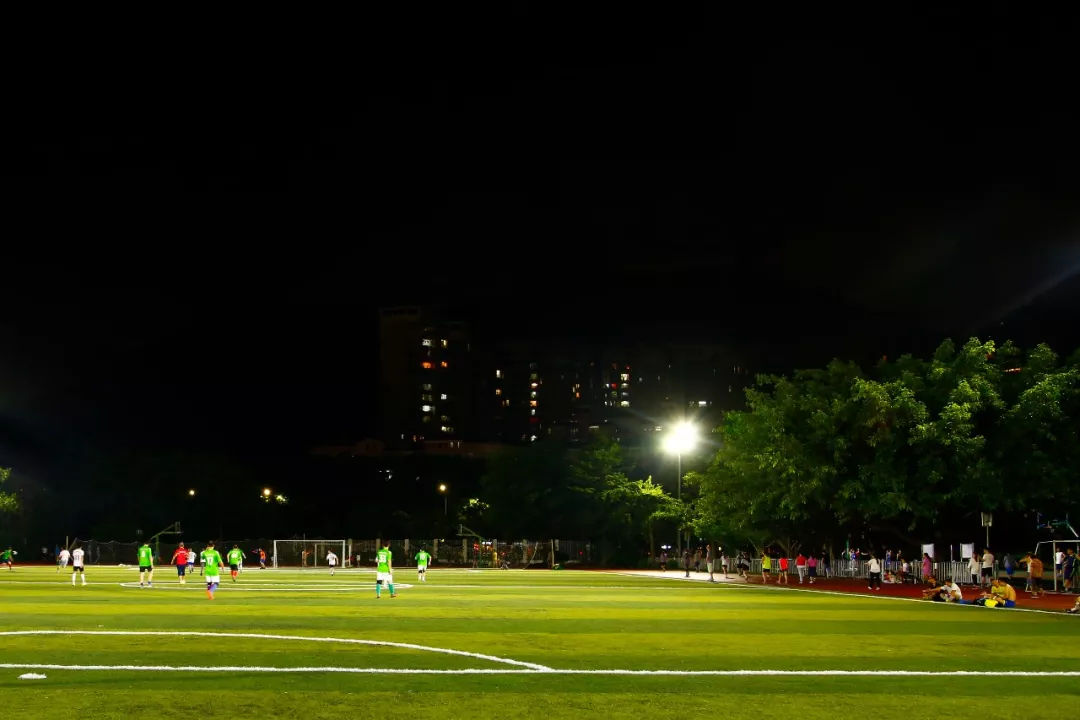

after replacement

we are pleased to participate in the construction of sports area lighting and commit to providing a perfect lighting solution for the whole school staff and amateur games, so that the athletes can enjoy the passion and sports.

return of investment of replacement

item	before	after
Light	metal halide	professional LED sports light and stadium light
avg illumination	72lux	163lux
light power	16800w	9120w
power consumption	100.8kwh/d	54.7kwh/d
electric charge	cny40471.2/y	cny21970/y
cost saved	cny18501.2/y
total saving efficiency	45.7%
performance increasing	226.4%

the models we used to rebuild the lighting system for this football field

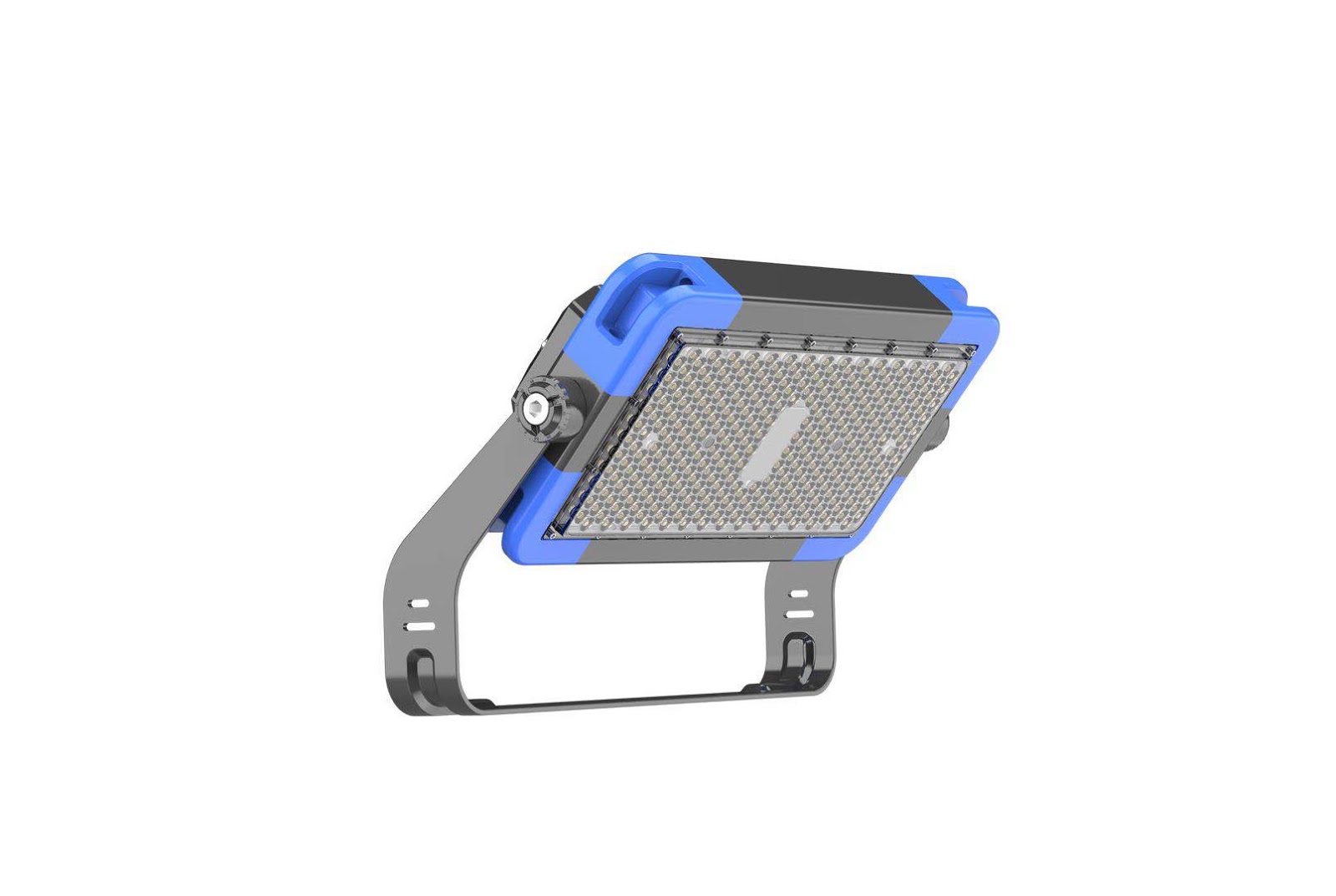

250W LED stadium/sports light@150lm/w

500W LED stadium/sports light@150lm/w

750W LED stadium/sports light@150lm/w

1000W LED stadium/sports light@150lm/w
